Fill-Master Precision Automatic Water Filling System

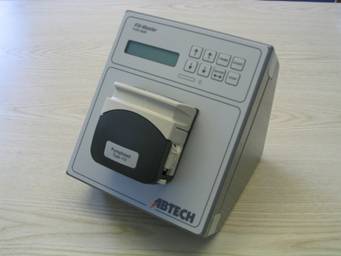

Fill-Master System



The Fill-Master is a precision automatic watering system for vented nickel-cadmium aircraft batteries.  Using an adjuster feeder, the user can add distilled water to each cell quickly, while recording the exact quantity of water added for hard-copy print-out. The control unit has a standard parallel printer port and can be connected to virtually any parallel printer (not included with unit).

    Features:

• Designed for vented nickel-cadmium aircraft batteries

• Reduces filling and documentation time to 2-3 minutes

• Stops Automatically at required water level

• Prints the amount of water added to each cell

• Prints date, time and battery serial number

• Adjustable feeder to suit various battery types

     Specifications:

• Stopping accuracy within 1 mm of desired level

• Measurement of filled volume accurate within 0.1 ml

• Input Power 110 or 220 VAC, 50/60 Hz

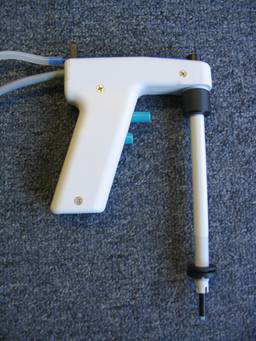

Adjustable Feeder
