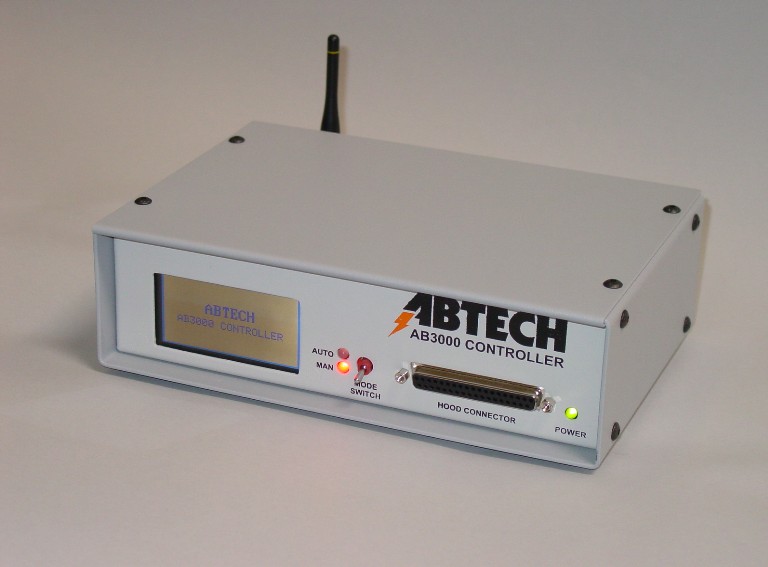

The ABTECH AB3000 Controller provides active PC control of Charger/Analyzers such as the RF80-K. The controller continuously monitors all critical battery charge and discharge levels, while automatically providing the necessary digital control inputs to the charger/analyzer.

Pre-programmed Service Routines allow the user to select common battery servicing tasks for automated battery processing.  When used with the ABTECH Battery Management System, all battery servicing activity is recorded and various reports are offered to help manage your battery serving operation and comply with regulatory requirements.

The controller features built-in battery data acquisition capability for precision monitoring of individual cell voltages, charge/discharge current and battery temperature.

Features and Benefits:

þ          Compatible with RF80-K, providing expanded functionality, automated operation & improved accuracy

þ          Integrated with Battery Management System for a complete aircraft battery documentation solution

þ          Pre-programmed Service Routines provide automated battery processing

þ          Data Acquisition of individual cell voltages, charge/discharge current and battery temperature

þ          Fill-Master interface captures individual cell water consumption

þ          Graphic LCD Display with white backlight for easy viewing of real-time servicing information

þ          Bar Code Reader allows battery s/n to be scanned and parameters to be automatically loaded

þ          Remote/Local selector switch allows operation via PC or manual front panel controls

þ          Easy installation may be done in the battery shop without removing the charger/analyzer

þ  Compatible with emerging battery chemistries
